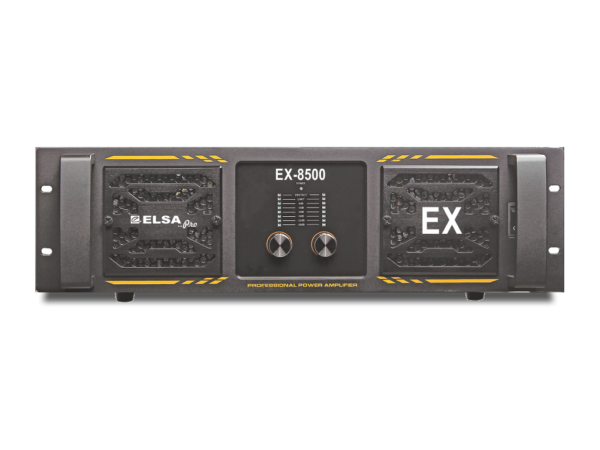

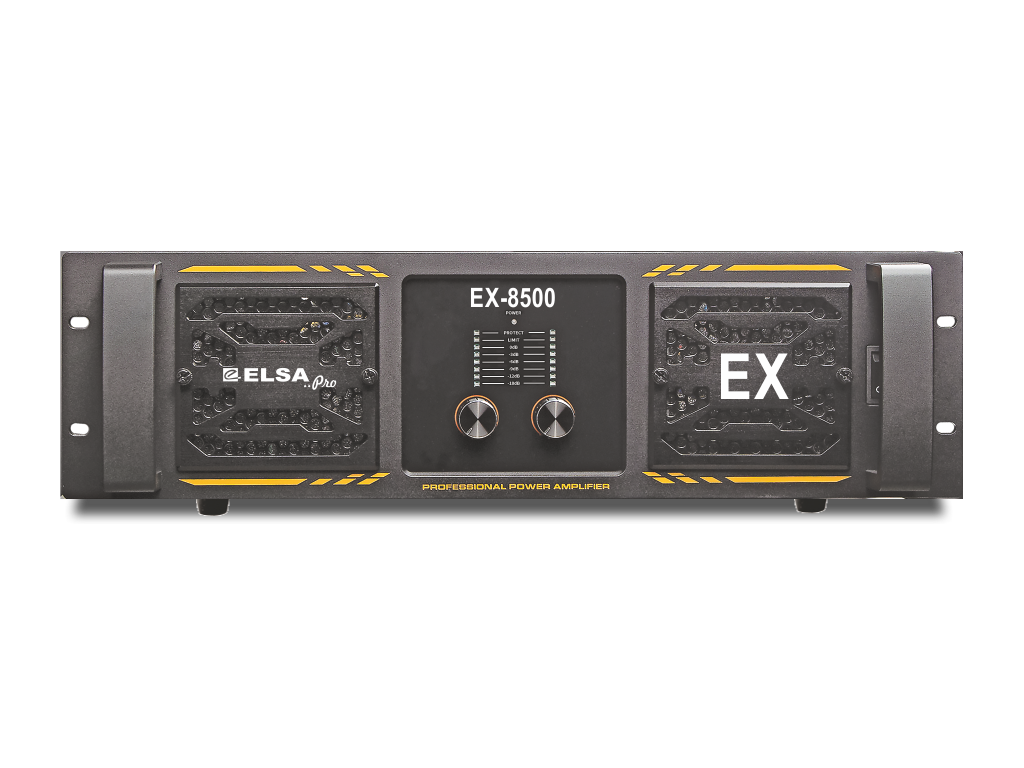

The ELSA EX-8500 is best solution for those space-constricted installed sound reinforcement applications where sonic quality and system performance are required on a long-term full-power operating basis. Implementing ELSA high efficiency Professional Power Amplifier provide an unprecedented acoustic fidelity on the Professional Power Amplifiers range
EX-8500 |
||
|---|---|---|
| 8Ω Stereo Power | 2 x 2000W | |
| 4Ω Stereo Power | 2 x 3000W | |
| 2Ω Stereo Power | 2 x 4000W | |
| 8Ω BTL | 6300W | |
| 4Ω BTL | 8500W | |
| Output Circuitry | Class H | |
| Frequency Response | 20-20000Hz (±0.3dB) | |
| THD + N | <0.08%1kHz | |
| S/N Ratio | ≥100dB | |
| Slew Ratio | 25V/uS | |
| Damping Factor | ≥500:1 | |
| Crosstalk | ≥62dB@1KHz | |
| Input Impedance | 20KΩ(Balanced, Stereo) / 10KΩ(Unbalanced, Parallel) | |
| Input Sensitivity | 0.775V/1.0V/1.4V | |
| Height | 3U | |
| Weight | 47Kg. | |
| Packing Size | 770 x 590 x 210 mm | |
Protection
with over-current, DC, overheat, short circuit protections, the main power protected by fuse, to ensure the safety of the whole unit, to enable users using it more safely and securely.
