The TZA 4000 USB series are the best solution for those space-constricted installed sound reinforcement applications where sonic quality and system performance are required on a long-term full-power operating basis. Implementing ELSA high efficiency P. A. amplifiers provide an unprecedented acoustic fidelity on the P. A. amplifiers range.
Applications:
– P. A. sound system.
– Small sized bar / café / lounge installation.
– Applications with signal processing requirements.
– Mobile / Portable public address or monitoring amplification.

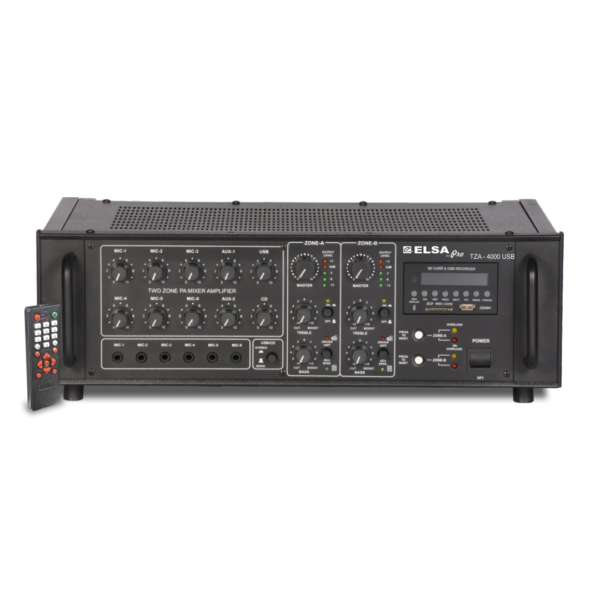

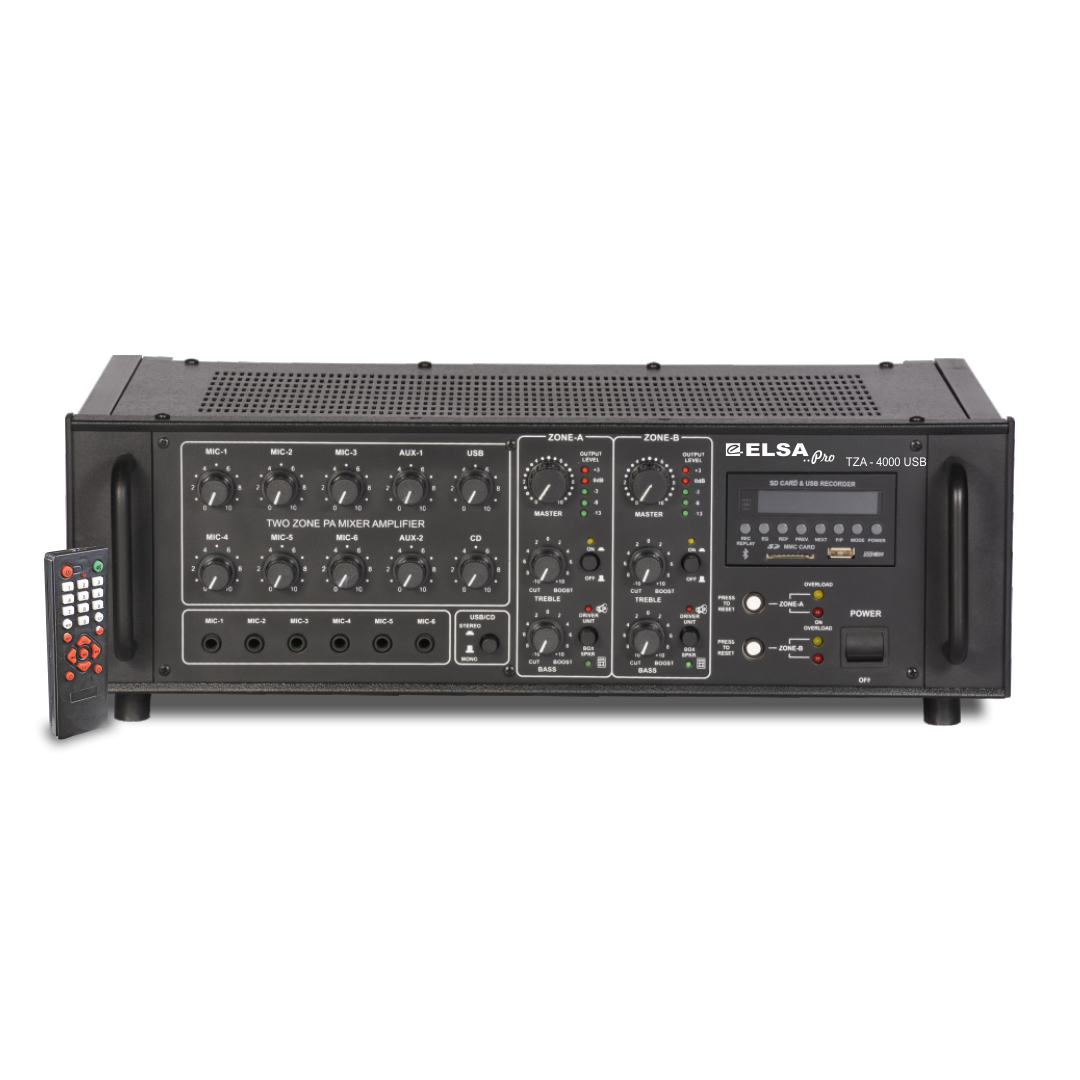

TZA 4000 USB
|
||
|---|---|---|
| Power Output | 300+300 Watts, 600W RMS at 10% THD 450 Watts Max.
180W+180W at 5% THD, 165W+165W at 2% THD |
|
| Output Regulation | <2dB, No Load to full load at 1 Khz | |
| Input Channels | 6 mic 0.6 mV/4.7KQ, AUX: 2 x AUX 100mV/470kΩ | |
| Freq. Resp. | 50 – 15k Hz ± 3dB | |
| Signal to Noise Ratio | 60dB | |
| Tone Controls | Bass : ± 10dB at 100Hz | Treble : ± 10dB at 10Hz | |
| Output | Preamp 200mV / 600Ω, Line 1V / 1KΩ | |
| Speaker Output | 4Ω, 8Ω, 70V & 100V | |
| Digital Receiver | Mp3 Player / Recorder with Bluetooth / USB/ MMC / SD with Remote Control | |
| FM Receiver | 88-108 MHz Tuning range | |
| Power Supply | AC : 220 – 240V 50/60Hz DC : 24V (2 Car Battery) | |
| Power Consumption | AC 700VA DC: 9A | |
| Dimensions | W510 x H172 x D385 mm | |
| Weight | 24 Kg | |
