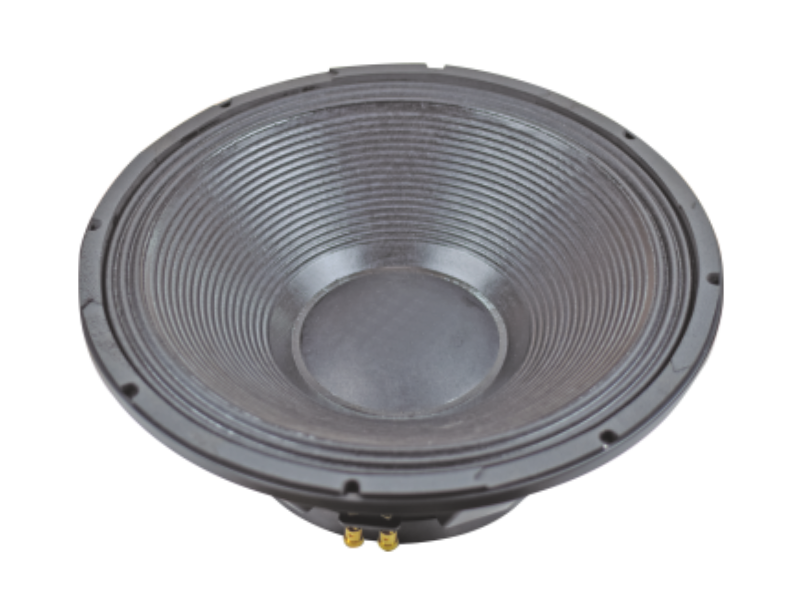

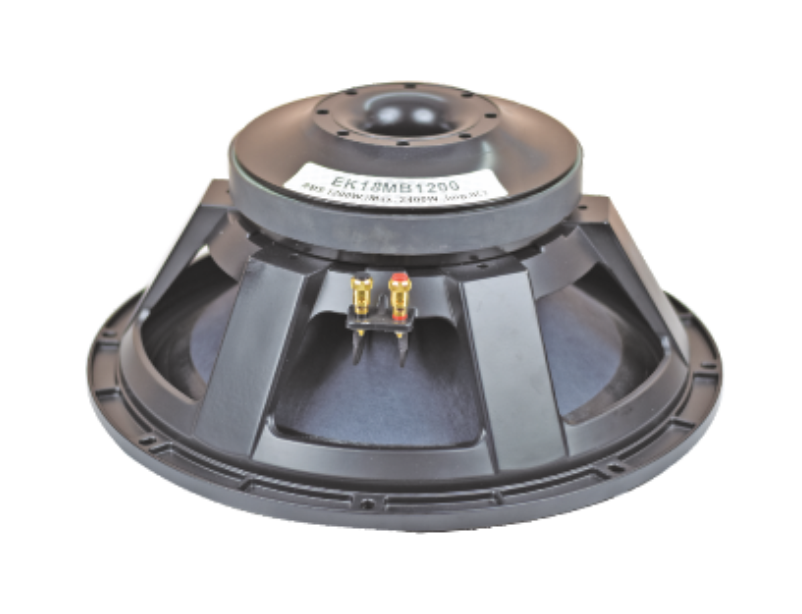

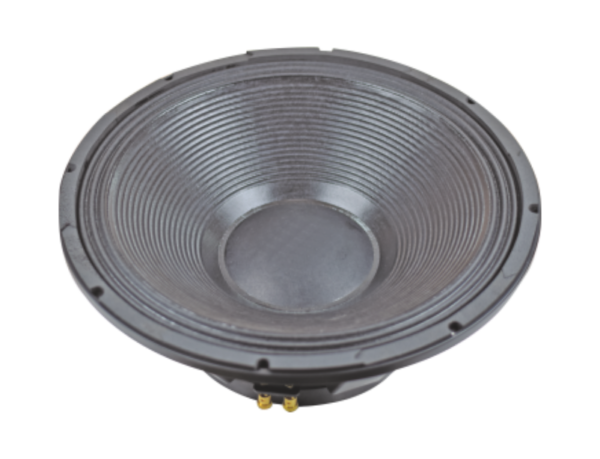

ES18MB1200

Professional Loudspeaker

Sturdy pressed metal frame in elegant brown colour.
Kapton former voice coil for withstanding high temperature.
Suitable for use in compact 2-way sealed as well as bass reflex enclosures.
Excellent low frequency response makes it ideal for Dandiya-Ras, DJs & General PA applications.

ES18MB1200

Product Description

ES18MB1200 4.5″
Power Rating	1200W RMS
Nominal Diameter	381mm (15 Inch)
Nominal Impedance	8Ω
Sensivity (1W/1m)	97dB
Maganet Size	155 mm (155×20)
Resonant Frequency (Fs)	50Hz
DC Resistance (Re)	7Ω
Voice Coil	4.5 Inch
Overall Diameter	457 mm

Kapton former voice coil for withstanding high temperature.
Suitable for use in compact 2-way sealed as well as bass reflex enclosures.
Excellent low frequency response makes it ideal for Dandiya-Ras, DJs & General PA applications.

Power tested under the condition of 20ms burst, 1KHz sine wave and 1% THD. Others power tested under the condition of 40ms burst, 1KHz sine wave and 1% THD.

ELSA reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
- Applications with signal processing requirements.
